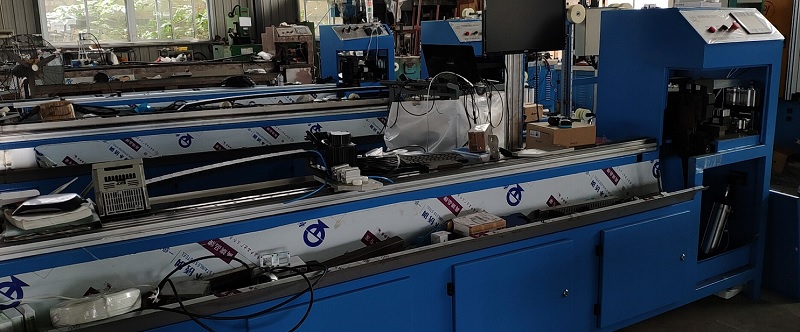

1. WIRE ROPE LENGTHING CUTTING AND END SHAPED LOSSEN MACHINE
1.1 Cutting diameter of cable: 1-2mm，3-5mm
1.2 Cutting length: standard is 2m, if need more longer can make also.
2. FOUR. MAIN PARAMETERS
2.1 Wire diameter: ф1.0 ～ ф2.0 mm (explain when ordering)
2.2. The fastest cutting speed: 26 pieces per minute 1 meter long
2.3 Main motor: Taiwan Delta servo motor
2.4 Air pressure is around 0.6-0.8 kg
2.5. Electric 380V 50HZ
2.6, servo motor 1000W
2.7 Power supply: Voltage: three-phase 380V + N, 50Hz
2.8. Total capacity: 1kw-1.5kw
2.9 Space occupied by equipment after installation: 2500 × 955 × 820 mm
2.10. Equipment weight: about 0.5T
3. CAPACITY：1-2M LENGTH, Can make 16000-20000pcs/10hrs/day.
4. OPERATION WAY:
4.1 Continuously length cutting and end shaped loosen of each diameter wire rope.

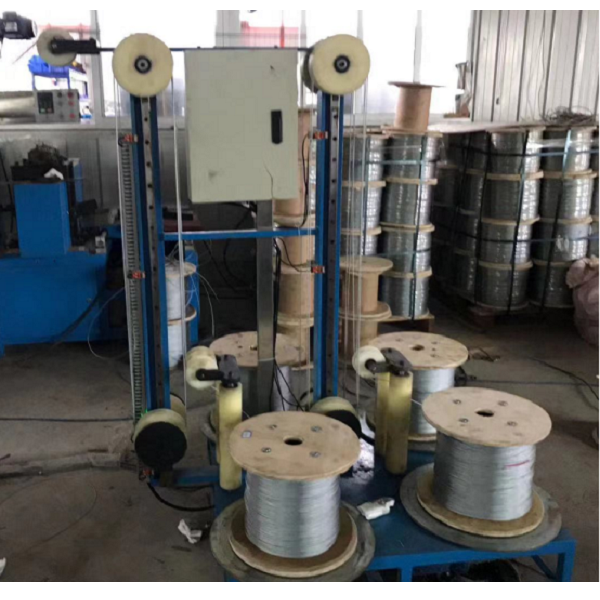

4.2. Automatically insert the wire rope from the shelf.
4.3. Set the quantity no,s of wire you want to cut, when reach to this qty will be stop automtically
4.4 Have two main function: on screen has all kinds functions belows can be chosen depends on your demand:
4.4.1 cutting cutting
4.4.3 welding welding
4.4.4 cutting +cutting+ end flower
4.4.5 welding ++cutting+ end flower
4.4.6 welding+welding +end flower
4.4.7 welding cutting+end flower.
