1. WIRE ROPE LENGTHING CUTTING AND END SHAPED LOSSEN MACHINE
1.1 Cutting diameter of wire rope: from ф0.8mm to ф5mm
1.2 Cutting length: standard is 2m, if need more longer can make also, the max length of wire rope is 5 meters
2. FOUR. MAIN PARAMETERS
2.1 Wire diameter: ф0.8 ～ ф5.0 mm;
2.2 The fastest cutting speed: 30 pieces per minute;
2.3 Main motor: Taiwan Delta servo motor;
2.4 Air pressure is around 0.6-0.8 kg;
2.5 Electric 380V 50HZ (we can adjust it to suit your country);
2.6 servo motor 1000W;
2.7 Power supply: Voltage: three-phase 380V + N, 50Hz
2.8 Total capacity: 1kw-1.5kw
2.9 Space occupied by equipment after installation: 2500 × 955 × 820 mm
2.10 Equipment weight: about 0.5T

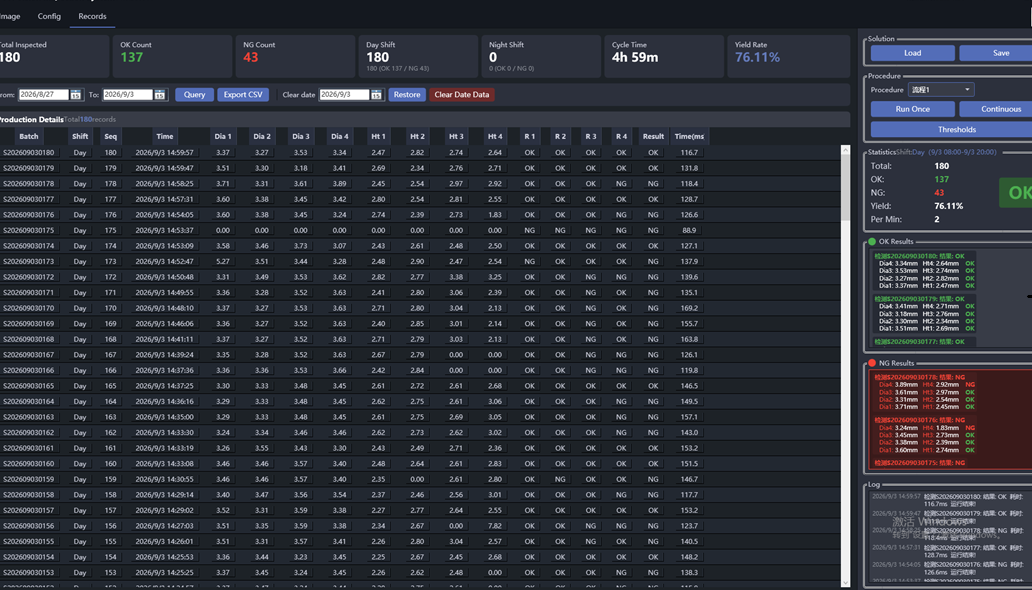

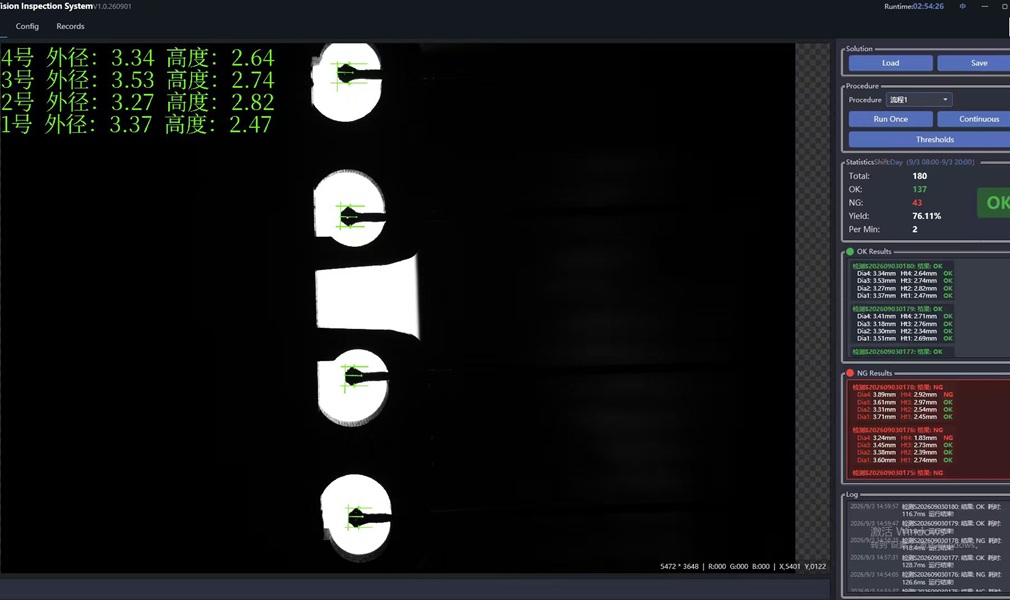

2.11 This machine can inspetion the flower, if the flower size more or less then set value, the machine will stop and alarm. (optional see below pictures)
3. CAPACITY：1-2M LENGTH, Can make 16000-20000pcs/10hrs/day.
4. OPERATION WAY:
4.1 Continuously length cutting and end shaped loosen of each diameter wire rope.
4.2. Automatically insert the wire rope from the shelf.
4.3. Set the quantity no,s of wire you want to cut, when reach to this qty will be stop automtically
4.4 Have two main function: on screen has all kinds functions belows can be chosen depends on your demand:
4.4.1 cutting + cutting
4.4.2 melting + cutting.
4.4.3 melting + melting

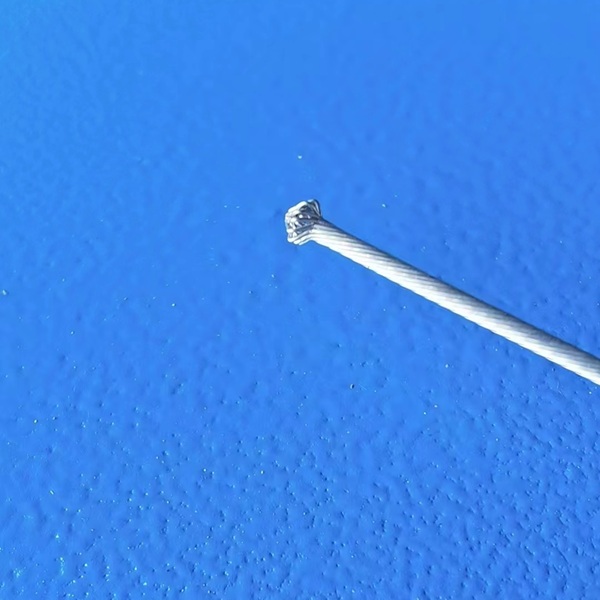

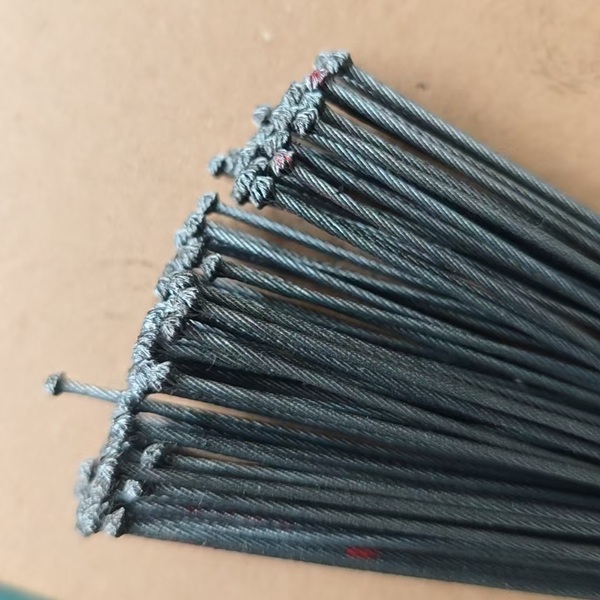

4.4.4 cutting +cutting+ end flower
4.4.5 melting + cutting+ end flower
4.4.6 melting+melting +end flower
4.4.7 melting cutting+end flower.
