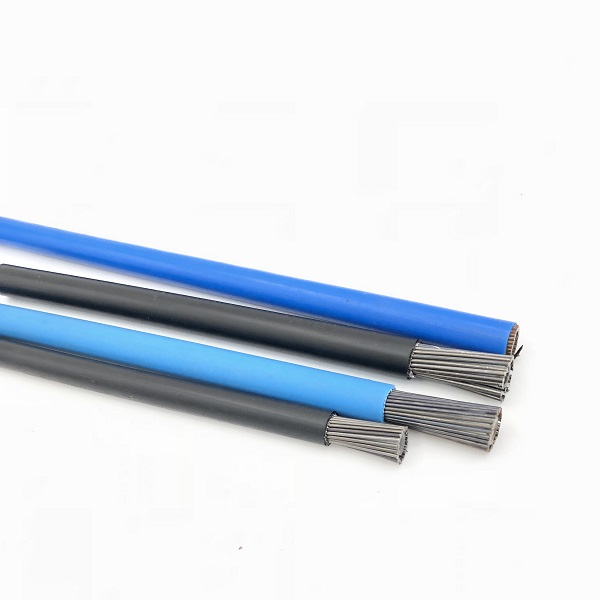

PUSH PULL CONTROL CABLE OUTER CASING

Product Description

Push-pull cable outer casing is the main part of control cable which can be widely used for
vehicles, construction machinery, and ship industry. It has the property of not being burn-in, no cracking, high&low temperature resistance, friction resistance, corrosion resistance, and long service life.

Specification
mm

Inner Dia.
mm

PCS of Steel Wire

Liner Material

Coating Material

φ4.0

1.5

15

PP/PE/POM/PTFE

PE/ PP

φ4.15

1.6/1.8

17

PP/PE/POM/PTFE

PE/ PP

φ5.0

2

19

PP/PE/POM/PTFE

PE/ PP

φ6.0

2.1

18

PP/PE/POM/PTFE

PE/ PP

φ7.0

2.3

19

PP/PE/POM/PTFE

PE/ PP

φ8.2

2.7

21

PP/PE/POM/PTFE

PE/ PP

φ9.0

3.5/3.8

24

PP/PE/POM/PTFE

PE/ PP

φ9.0

4.1/4.2

26

PP/PE/POM/PTFE

PE/ PP

φ10.0

3.8/4.2

22

PP/PE/POM/PTFE

PE/ PP

φ11.0

4.5/4.8

24

PP/PE/POM/PTFE

PE/ PP

φ11.0

5.0/5.2

25

PP/PE/POM/PTFE

PE/ PP

φ12.0

5.5

23

PP/PE/POM/PTFE

PE/ PP

We can make production according to customer's specifications including the material, color, dimension and packaging.
